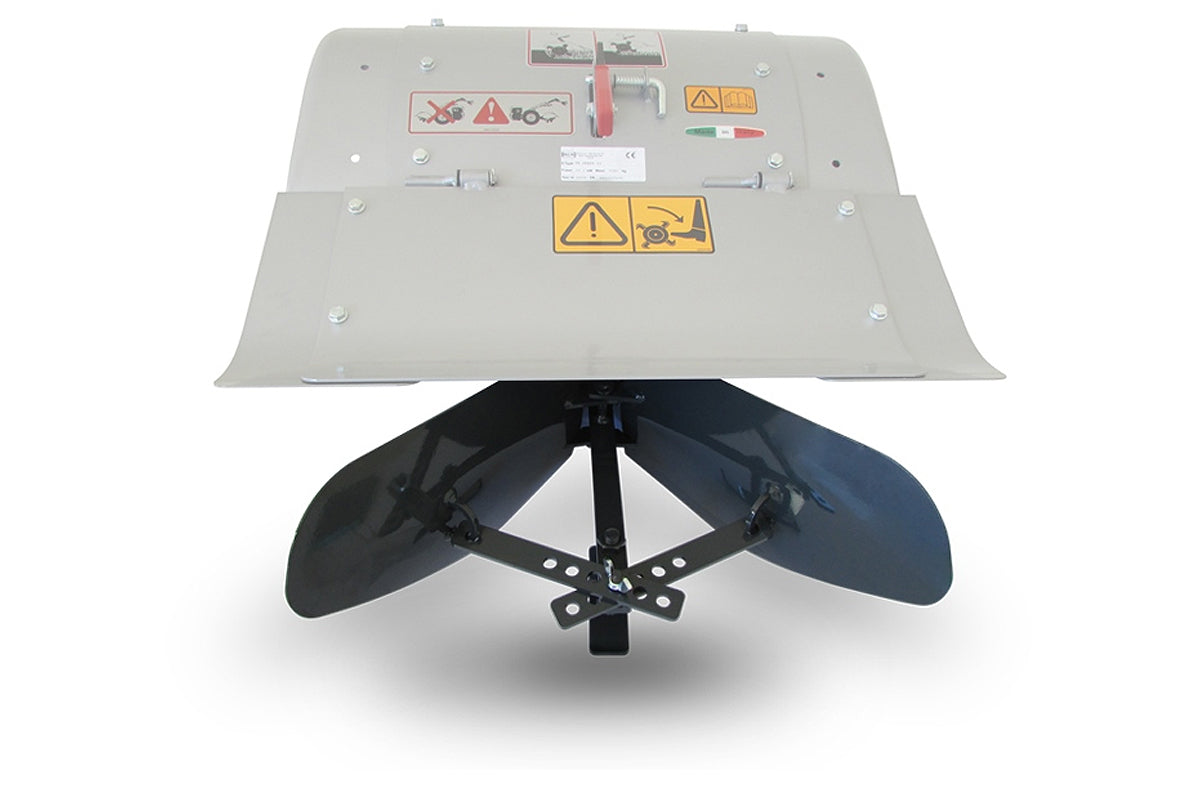

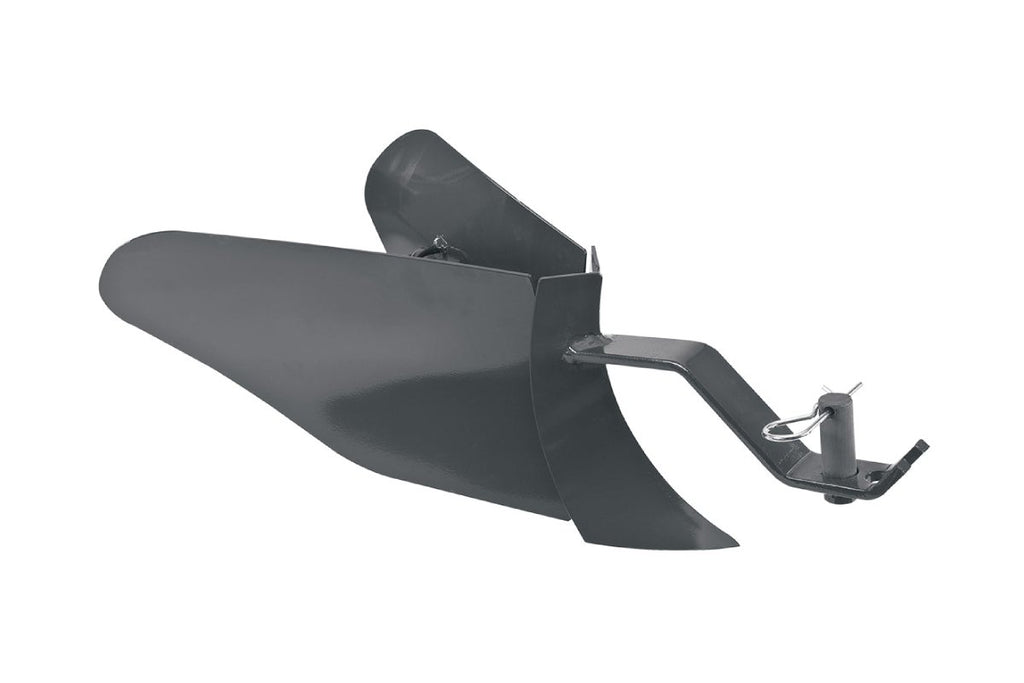

BCS Trailed Ridger Attachment
The trailed ridger fits into the rotavator so you can rotavate and ridge in one pass. It is ideal for “earthing up” and for creating ridges and furrows from 10cm (4”) to 23cm (9”) deep.<br><br><b>Please note: This is the implement only.</b>
SKU: 92147860
Description
Are any couplers or toolbars needed?
DESCRIPTION

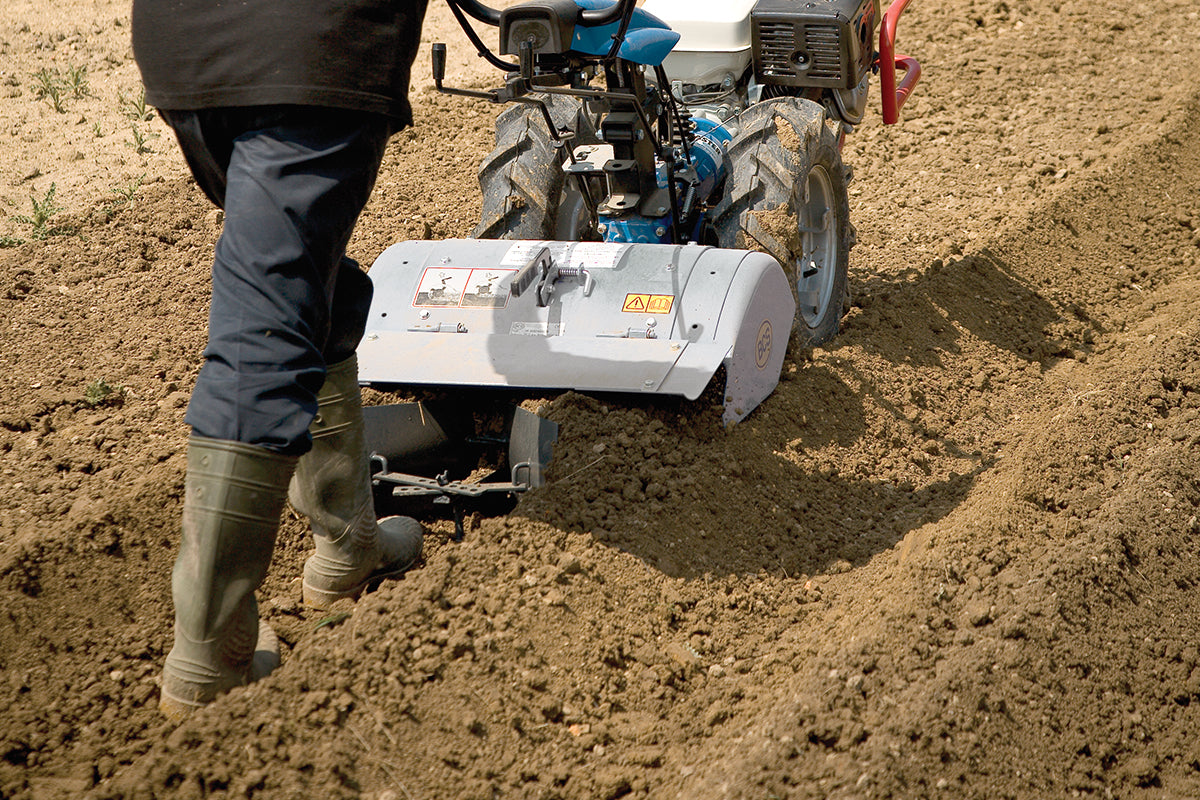

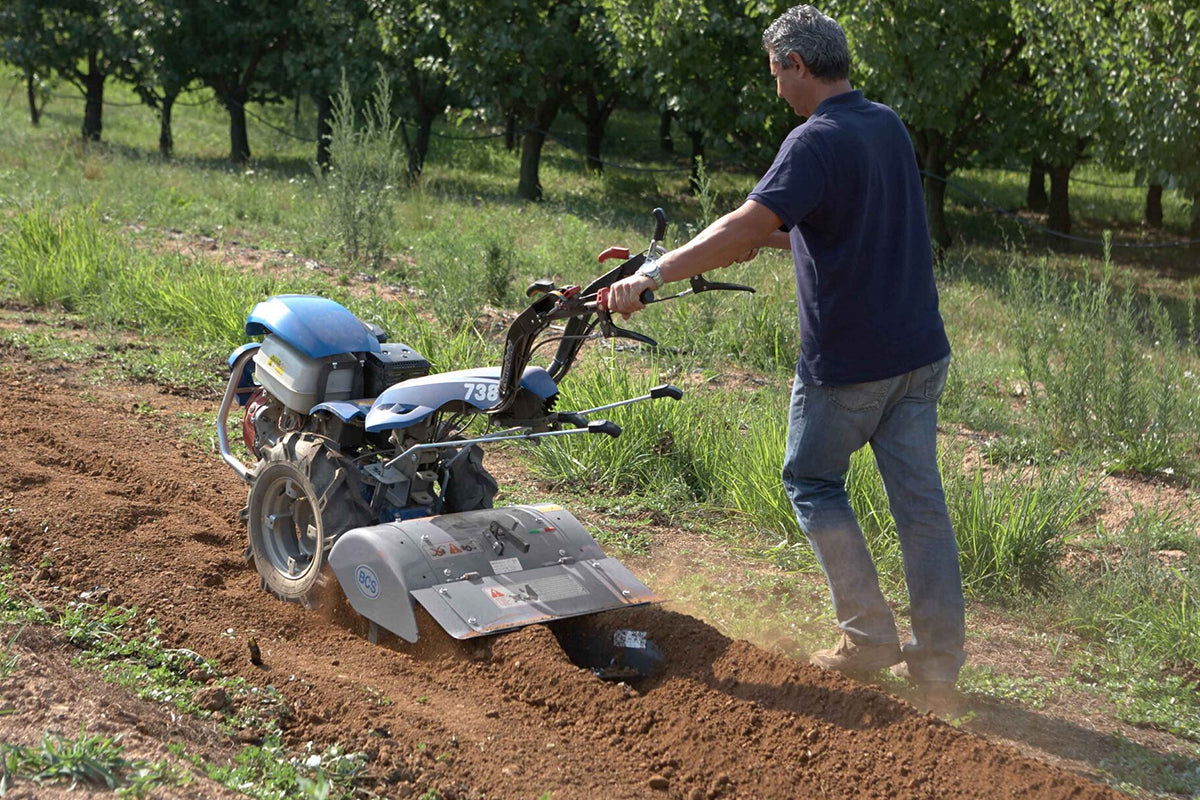

The Trailed Ridger slots into the back of the BCS rotavator attachment on the two wheel tractor, allowing it to be used at the same time as the rotavator. This means that the rotavator helps to propel the machine and the ridger through the earth so reducing the drag created by the ridger.

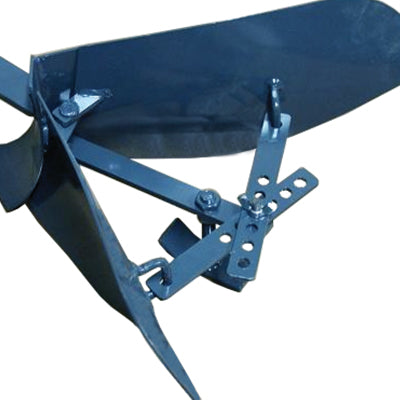

The working width of the trailed ridger is easily adjusted by placing a locking pin into a hole which will with push the wings out, or bring them in, depending on whether you are widening or narrowing the width. The width can be adjusted from 10cm (4") to 30cm (12").
SPECIFICATION
| Trailed Ridger | |
| Working Width | 10cm (3") to 30cm (12") |
| Working Depth | Up to 23cm (9") |
| Dimensions (L W H) | 52 x 59 x 20cm* |
| Weight | 8kg |
*with wings at maximum width
Which power units will the trailed ridger fit to?
| BCS 710 | X |
| BCS 728 | X |
| BCS 738 | X |
| BCS 740 | X |
| BCS 750 | X |
| BCS 780HY | X |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | |
| BCS 630 | |
| BCS 630WS | |
| BCS 660HY |
Are any couplers or toolbars needed?
The trailed ridger fits into the back of the rotavator, so there are no couplers or toolbars required.
