Description
DESCRIPTION

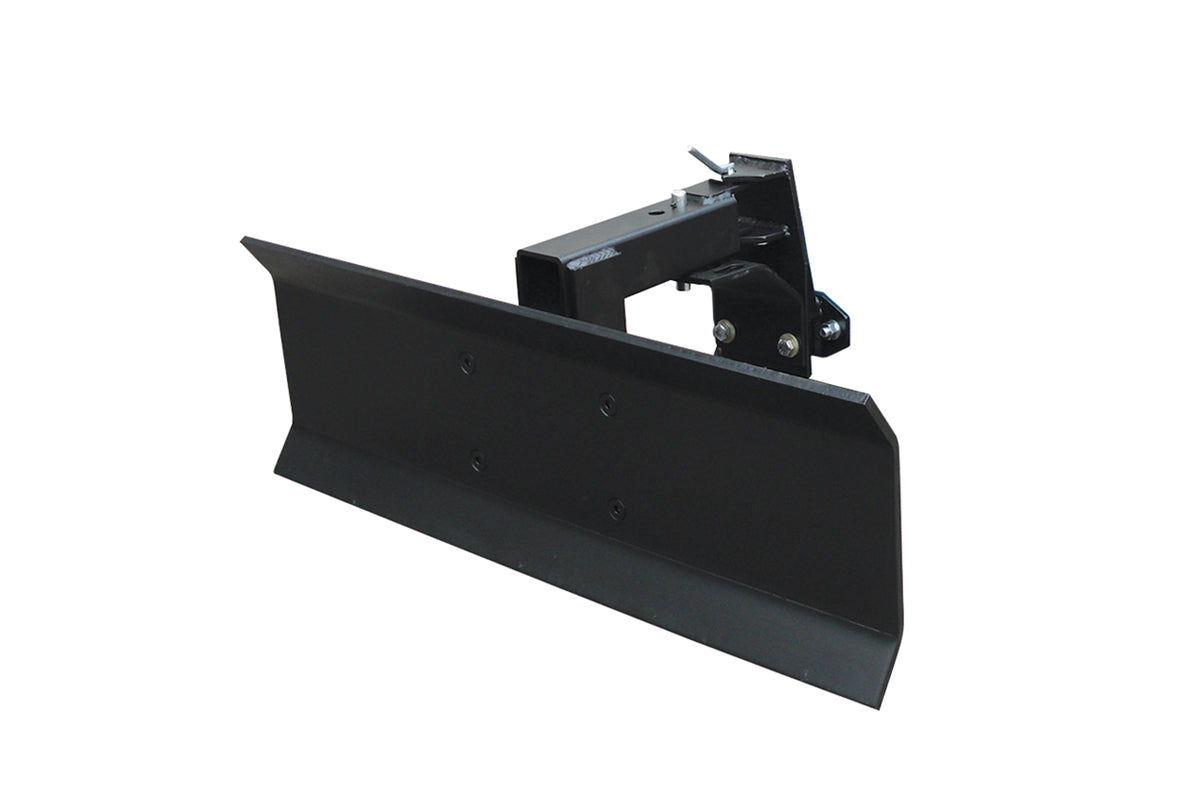

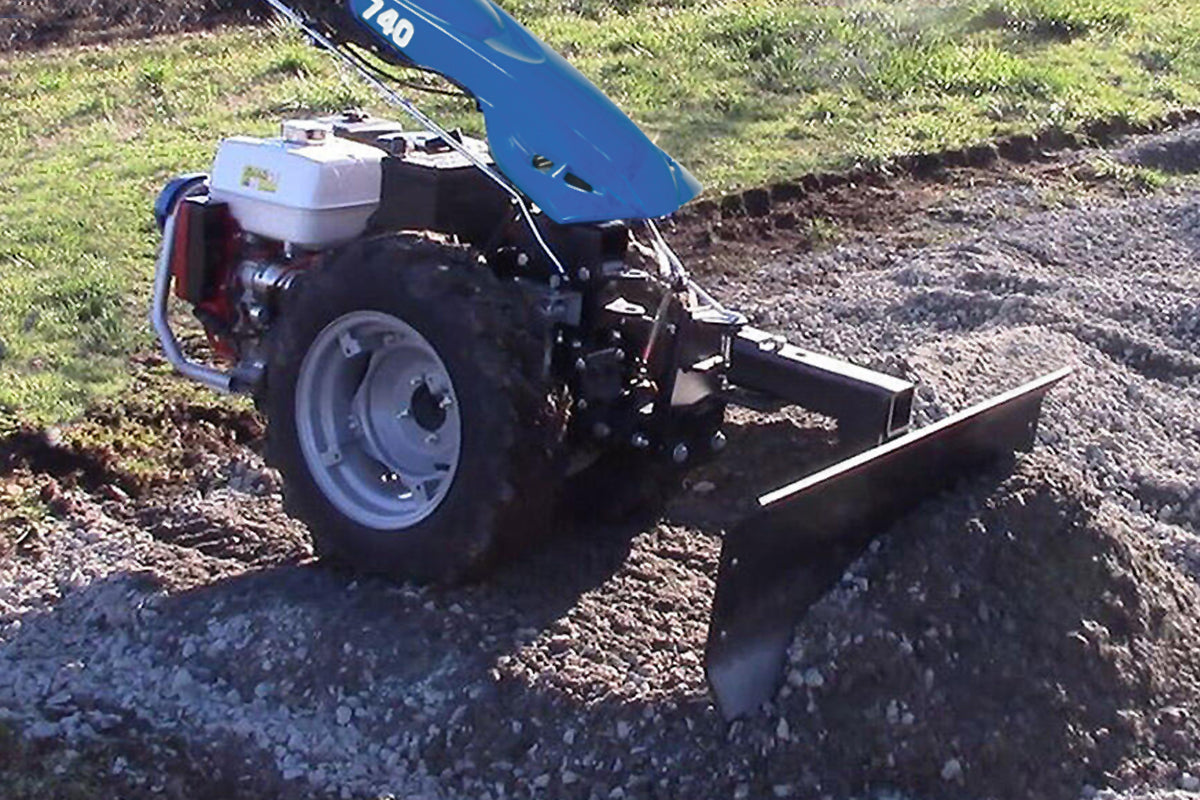

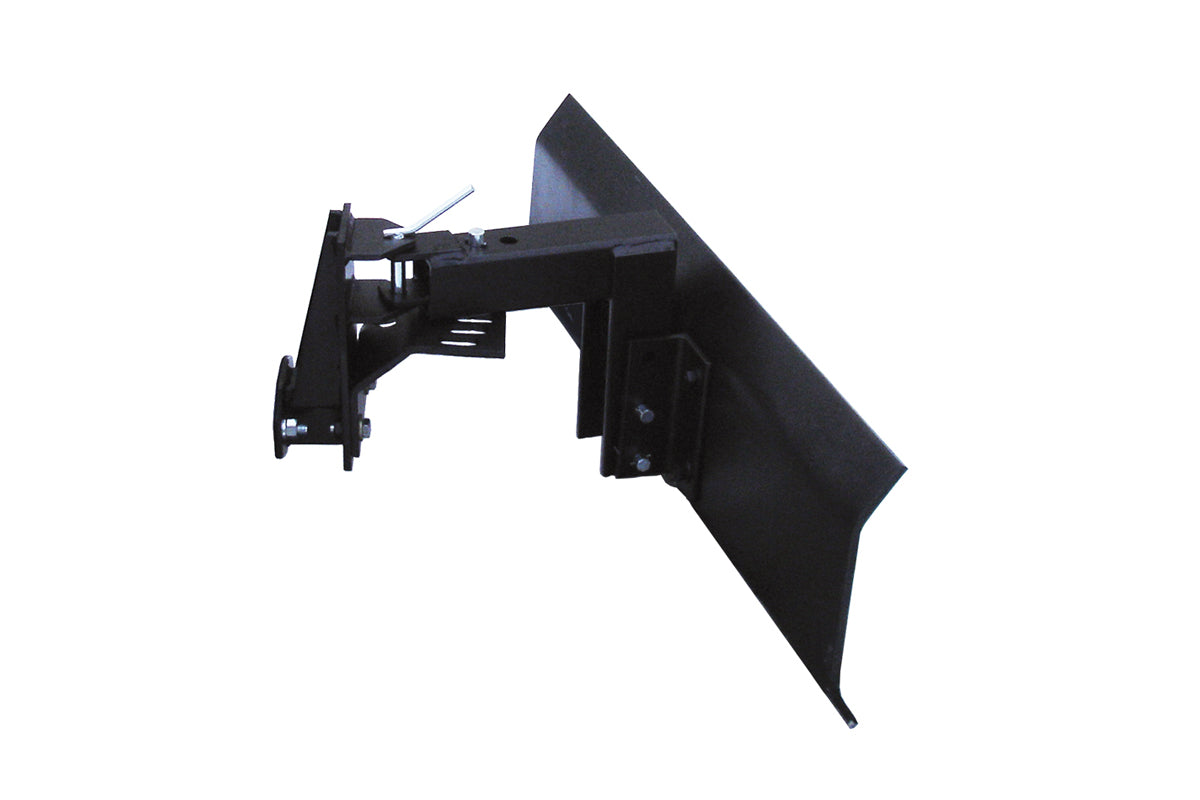

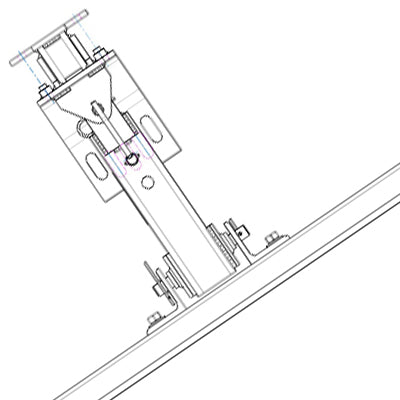

The blade can be easily angled through 5 positions - two left, two right or straight ahead - so debris can be pushed in the required direction.
The position of the steel blade is inverted which enables it to either push or pull material.

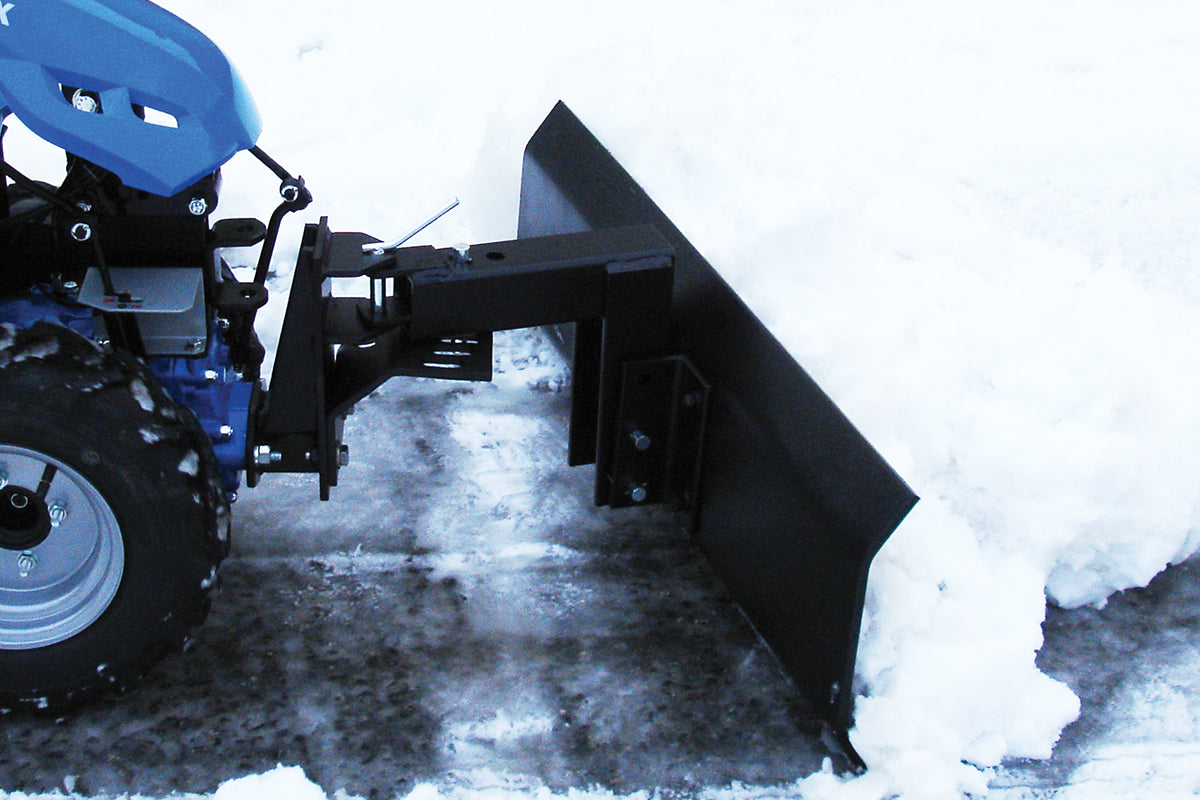

Unlike the snow plough, the dozer blade is mounted in a fixed position to avoid floating. This ensures maximum levelling performance.
Wheel weights are available as an optional extra if more traction is required.
SPECIFICATION
| Dozer Blade | |
| Working Width | 100cm (40") |
| Dimensions (L W H) | 32 x 100 x 30cm |
| Weight | 55kg |

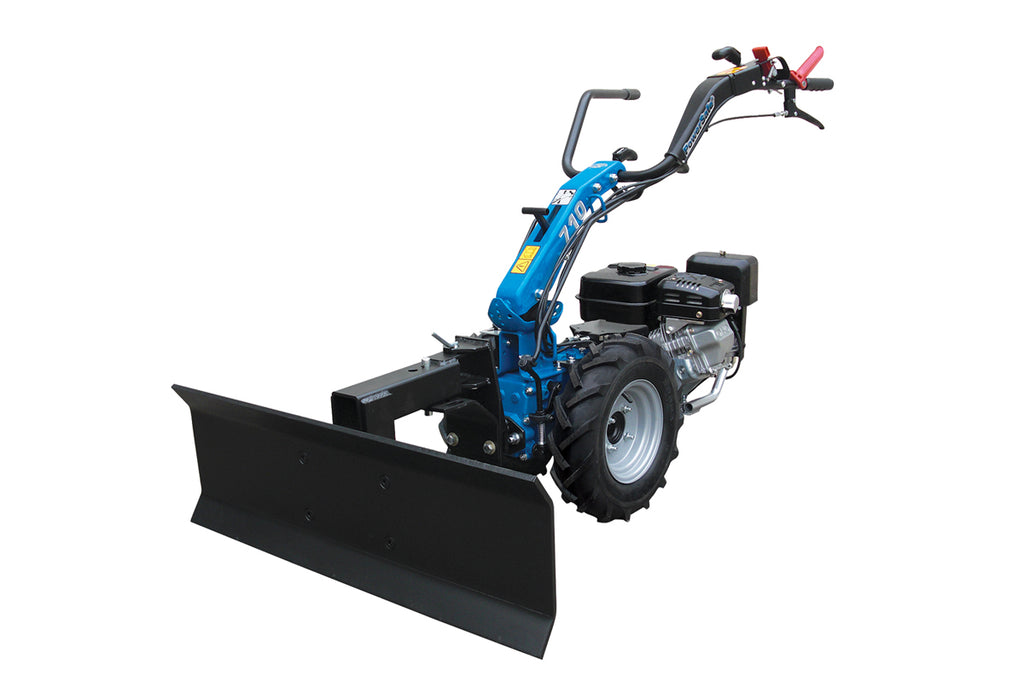

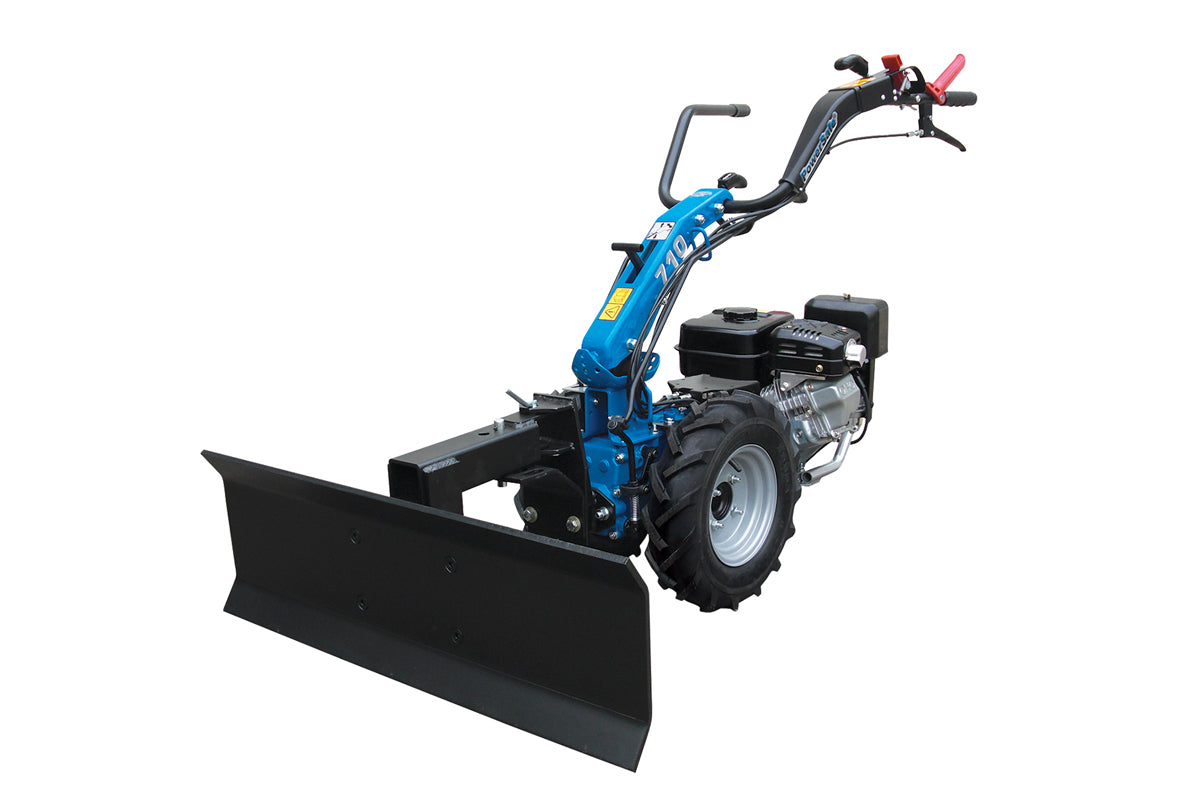

Which power units will the dozer blade fit to?
| BCS 710 | X |
| BCS 728 | X |
| BCS 738 | X |
| BCS 740 | X |
| BCS 750 | X |
| BCS 780HY | X |
| BCS 614 | X |
| BCS 615 | X |
| BCS 618 | X |
| BCS 630 | X |
| BCS 630WS | X |
| BCS 660HY | X |
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then a Blank Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
If fitted to the BCS 738 diesel, 740, 750, 770HY, 630WS or 660HY then additional weight may need to fitted to the blade to balance the machine and implement.
Wheel weights may be needed for additional traction.
