The machine uses two drives; one controls the wheels to move the machine forwards and the other controls the digging tines. Because both drives are functioning simultaneously the machine is effectively doing all the work.

The rotavator will keep digging for as long as it is in contact with the ground and in good conditions, and after a few passes, it can dig down to a depth of up to 8" (20cm).

The digging depth is easily controlled via the control lever which is located on top of the digging box. To increase the digging depth simply move the lever up or for shallow digging move it all the way in.

The BCS 738 Rotavator is perfectly balanced with a choice of petrol engines and a 26" (66cm) wide rotavator box. With three forward and reverse speeds for faster operation (particularly when using the grass cutting attachments) and large wheels with a locking differential for fantastic manoeuvrability and on-the-spot turning, this rotavator offers simplicity, reliability and outstanding performance.

BCS 738 Rotavator (C10) Specification

Model	Honda GX270	Honda GX340
Fuel	Petrol	Petrol
Net Power Output	8.4hp / 6.3kW @3600rpm	10.7hp / 8.0kW @3600rpm
Starting	Recoil or Electric	Recoil
Fuel Tank Capacity	5.3L	6.1L
Fuel Consumption	2.4L per hour @3600rpm	3.1L per hour @3600rpm

Gears	3 forward & 3 reverse
Speeds	Forward:	I: 1.26 km/hr	II: 2.92 km/hr	III: 4.30 km/hr
	Reverse:	I: 1.33 km/hr	II: 3.08 km/hr	III: 4.53 km/hr
Brakes	Parking brake
Differential	Yes - locking differential
Wheels	5.00 x 10 agricultural
Weight	Honda GX270:	100kg
	Honda GX340:	106kg
Dimensions	Length:	180cm
	Width:	64cm (at handlebars)
		55cm (at wheels)
	Height:	120cm
Warranty	Domestic use:	3 years
	Commercial use:	2 years

Digging Width	66cm (26")
Digging Depth	20cm (8")
No of Tines	20
Weight	40kg

Parts Diagrams

Operating Manuals

Technical Bulletins

BCS Technical Bulletins

Back to BCS Rotavators

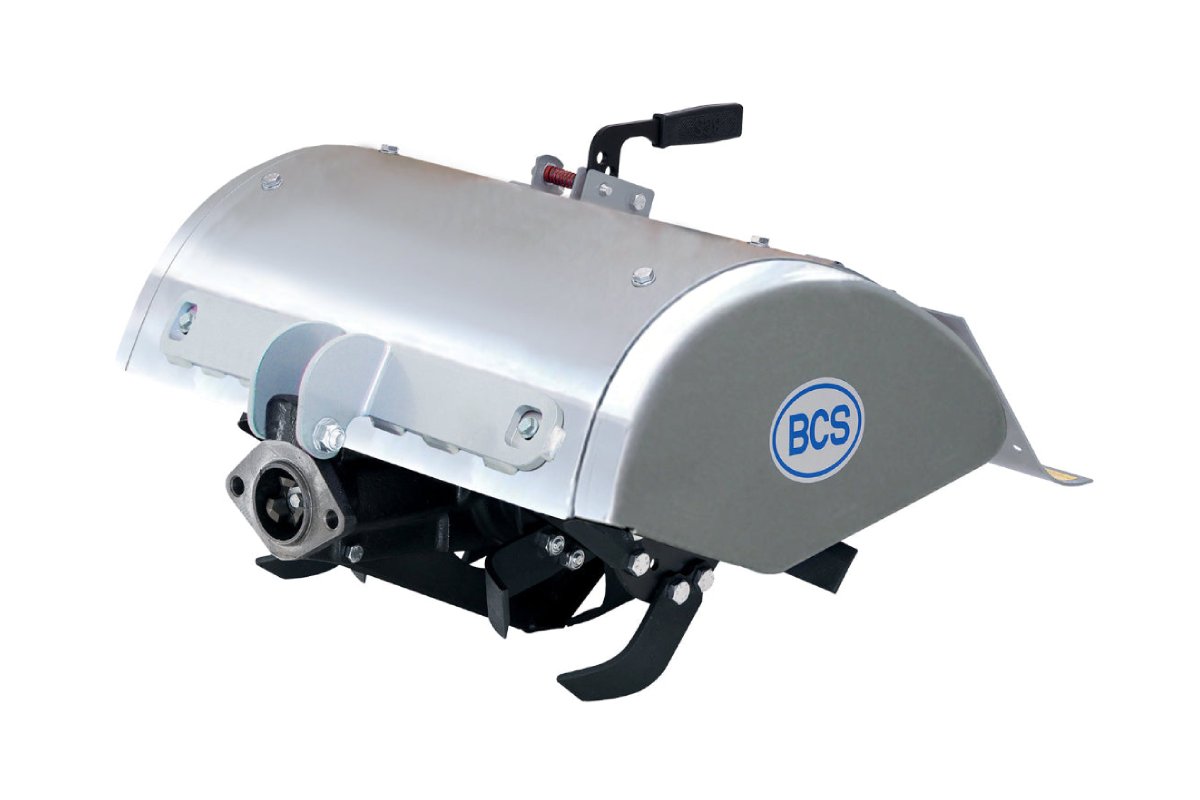

52cm (20") Rotavator Attachment
